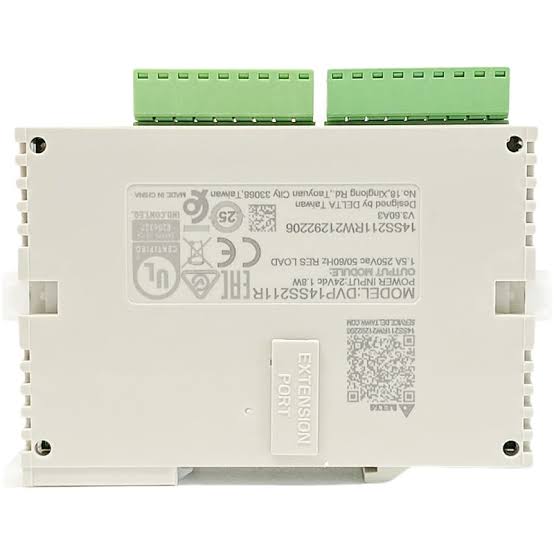

Processor & Memory Equipped with a 32-bit CPU for high-speed processing (basic instruction execution speed of 0.35 μs). It has an 8k step program capacity and a 5k word data register.
I/O Configuration8 digital inputs (Sink/Source) and 6 relay outputs. The relay outputs allow direct control of both AC and DC loads up to 1.5A.
Expandability The system is expandable up to 480 I/O points by attaching modules to the right side of the unit without external wiring.
Communication Built-in RS-232 and RS-485 ports support standard Modbus ASCII/RTU protocols for seamless connectivity with HMIs and VFDs.
Power & Environment Operates on 24V DC and mounts easily on a standard DIN rail. It operates efficiently in temperatures ranging from 0°C to 55°C.
